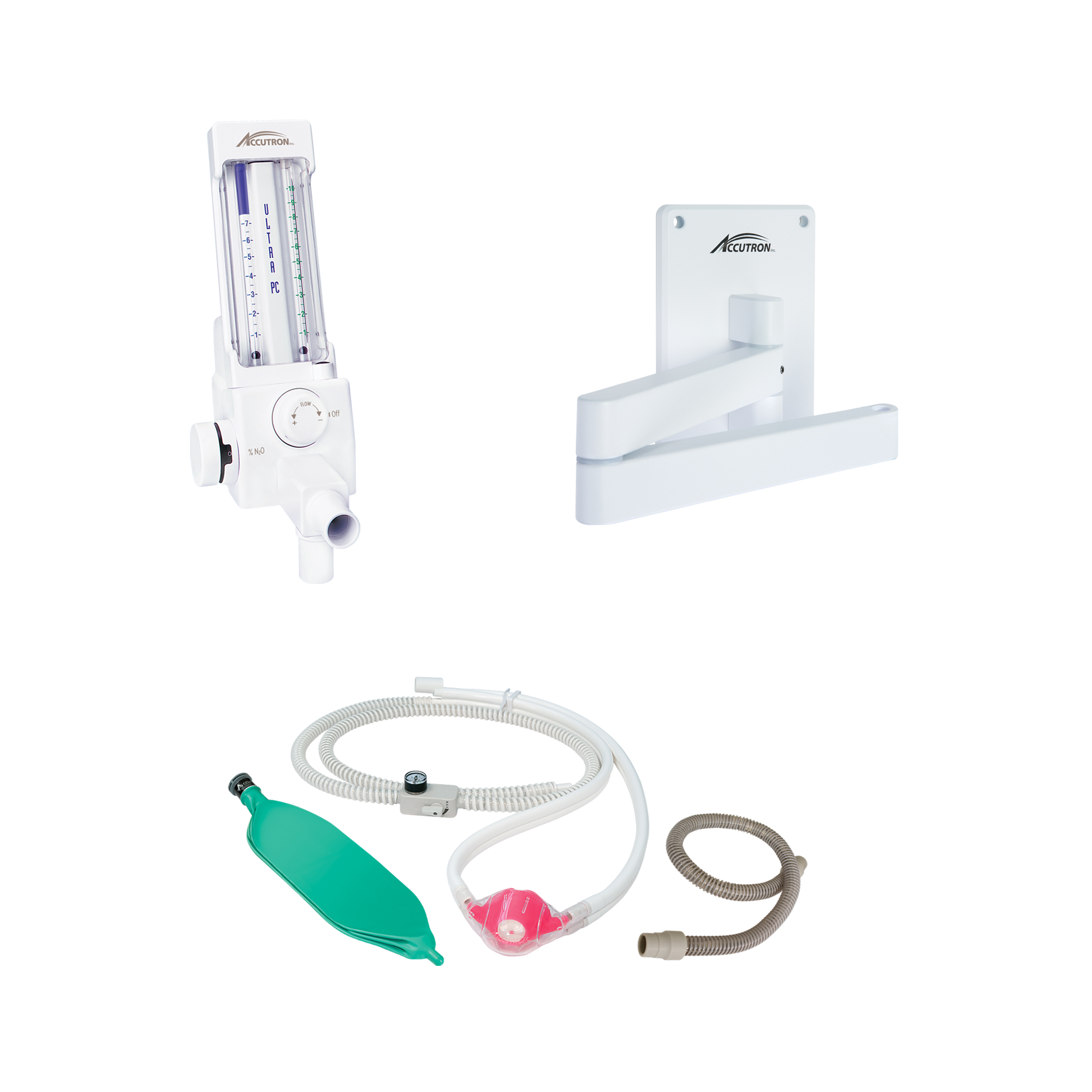

Accutron™ Ultra PC™ % Package E – 16-inch Bi-fold Wall Arm

The Ultra PC™ % Flowmeter is designed for the practitioner who demands precision control, consistent performance and state-of-the-art innovation. The unit combines efficient operation with optimal safety, and its appearance complements modern operatory esthetics.

• Single-knob total flow control.
• Nitrous oxide ratio control with 70% maximum.
• Oxygen fail-safe and oxygen flush.
• Oxygen resuscitation connector.
• Emergency air valve.
• Directional check valve.
• Continuous oxygen and nitrous oxide flow tubes.

(Note: Order quick connect hoses separately.)

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Product Specifications
Dimensions (W x H x D): 4 1/4" x 10 1/2" x 8"
Weight: 4.5 lb (2.0 kg)
Mixed Gas Outlet Diameter: 7/8" nominal (22 mm)
Oxygen Inlet: Male DISS (CGA-1240)
Nitrous Oxide Inlet: Male DISS (CGA-1040)
Nitrous Oxide Mix Ratio Range: 0-70%
Oxygen Flow Range: 1-10 LPM
Nitrous Oxide Flow Range: 0-7 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect (1/4" Imperial)
Resuscitator Connector Flow: 100 LPM Oxygen
